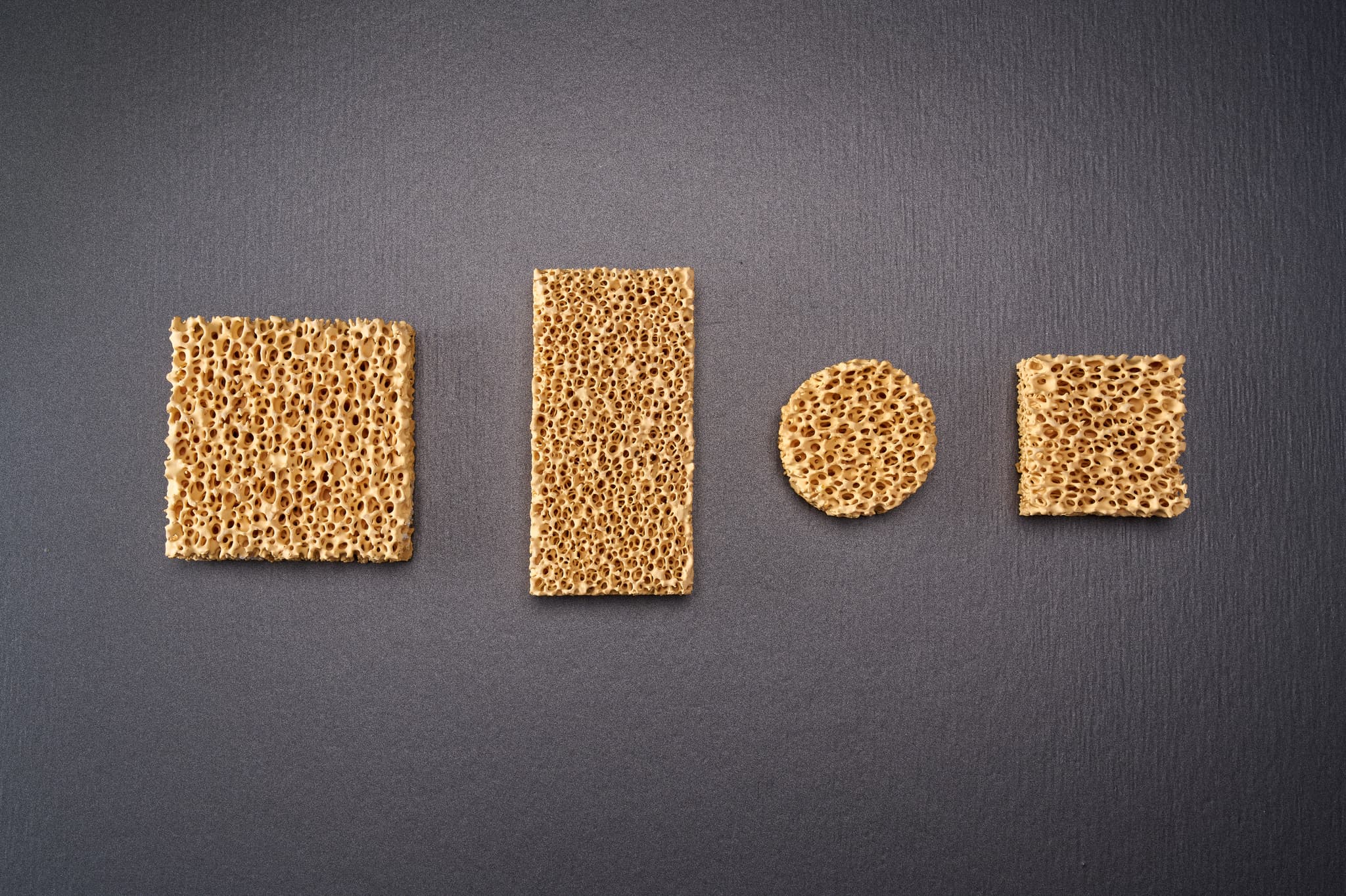

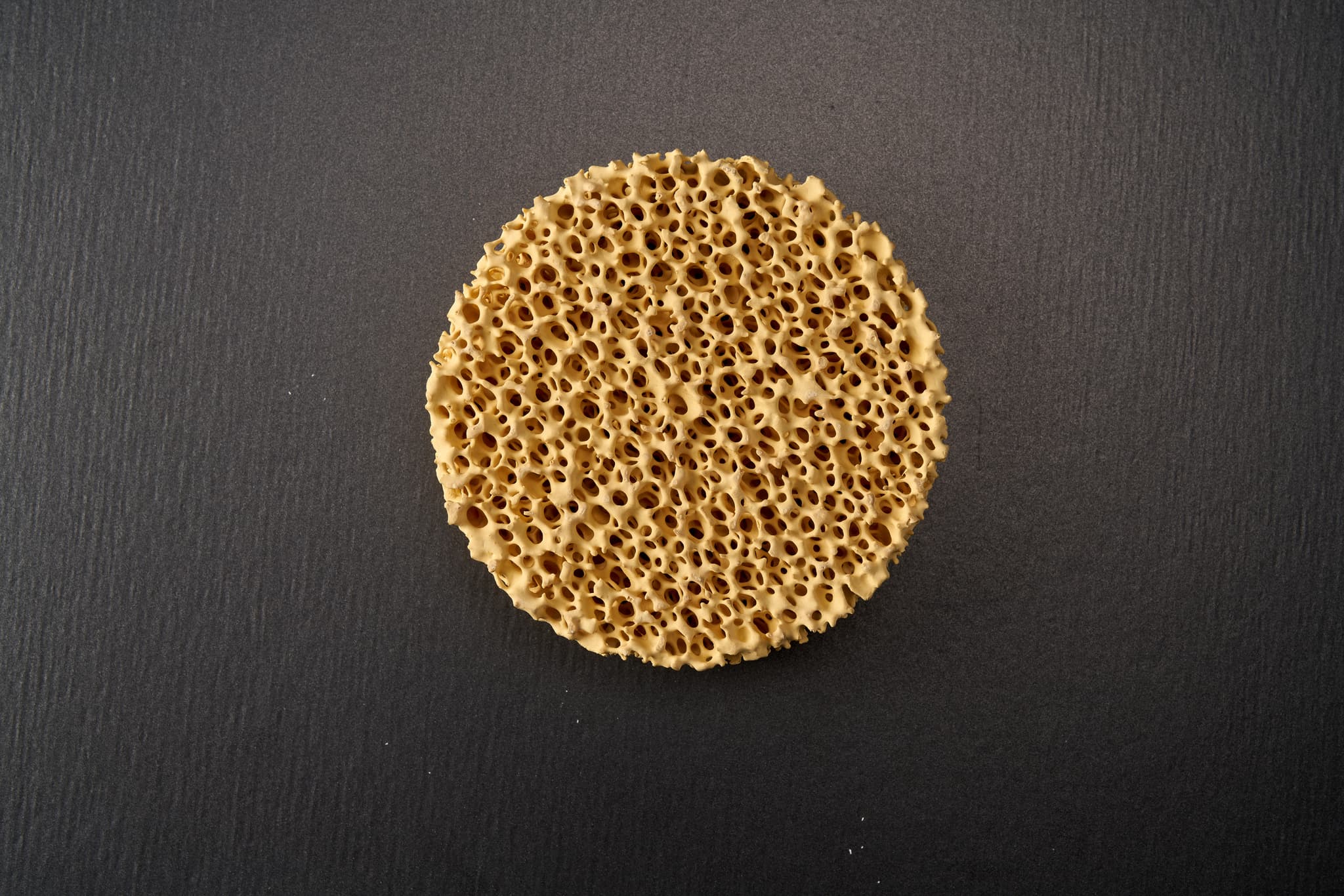

FILTEX® Zr. Ceramic foam filters are used in the production of steel and large iron castings, which can effectively trap non-metallic inclusions in the metal stream, resulting improvements are lower scrap, increased yield, mechanical properties, good finish and machinability. Suitable for all steel castings including Carbon Steel, Stainless Steel, Cobalt, Nickel alloy castings etc.
Porosity | 80 - 90 % |
Porse Distribution | 10 - 30 PPI |
Density | 0.70 - 0.85 g/cm3 |
Operating Temperature | 1700 degree Celsius |
Compressive Strength | 1.5 MPa |
Tolerance of Dimension | + 1 / - 2 mm (upto 99 mm) + 2 / - 3 mm (above 100 mm) |
